| Model |

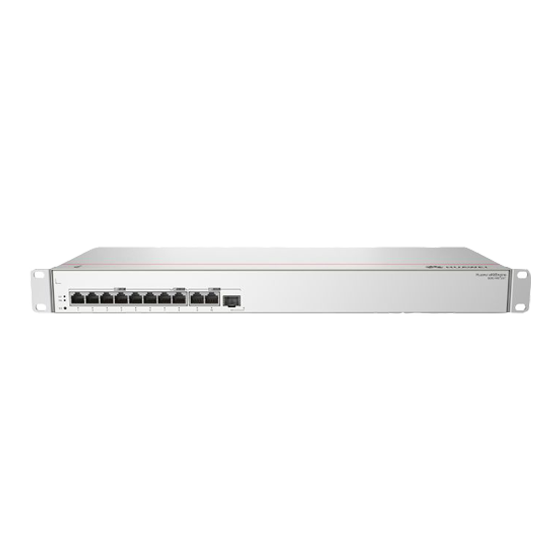

S380-L4P1T |
| Maximum user |
• 150 |
| Switching capacity |
• 8 Gbit/s |
| Packet forwarding rate |
• Upload:300 Kpps, download:420 Kpps |
| Egress bandwidth |
• 1 Gbit/s |
| Fixed WAN port |
• 1 x 10/100/1000BASE-T port |
| Fixed LAN port |
• 4 x 10/100/1000BASE-T ports |
| MAC address entry |
• 2K |
| Number of managed APs |
• 32 |
| Dimensions without packaging (H x W x D) |
• 35 mm x 210 mm x 130 mm |
| Chassis height |
• 1 U |
| Weight without packaging [kg] |
• 0.9 kg |
| Power module type |
• Power adapter |
| Rated input voltage |
• AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range |
• AC input: 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| Maximum power consumption |
• Without PoE: 11.65 W
• With PoE: 61.65 W (PoE: 50 W) |
| Long-term operating temperature [°C] |
• 0°C to 40°C at an altitude of 0-1800 m |
| Storage temperature |
• –40°C to +70°C |
| Relative humidity |
• 5% to 95% (non-condensing) |
| Heat dissipation mode |
• Natural heat dissipation |
