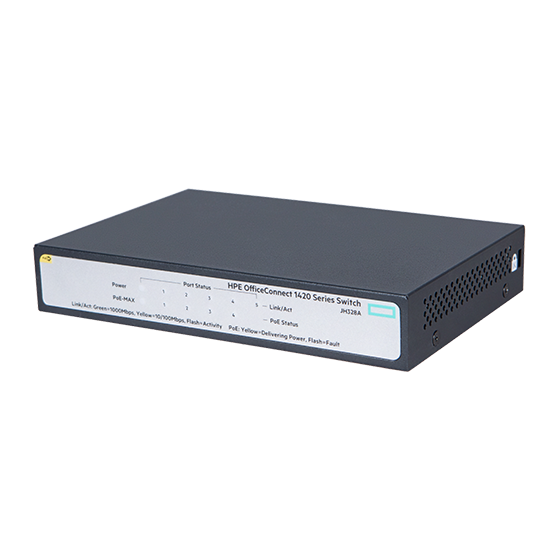

HPE OfficeConnect 1420 5G POE+ (32W) Switch (JH328A)

I/O ports and slots

5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

6.21(w) x 4.13(d) x 1.06(h) in (15.77 x 10.49 x 2.69 cm)

Weight

1.10 lb (0.5 kg)

Memory and processor

Packet buffer size: 1 Mb

Mounting and enclosure

Desktop (rear port)

Performance

100 Mb Latency

< 3 μs

1000 Mb Latency

< 2.6 μs

Throughput

up to 7.4 Mpps

Routing/Switching capacity

10 Gbps

MAC address table size

2048 entries

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 95%, noncondensing

Acoustic

Fanless

Electrical characteristics

Frequency

50/60 Hz

Voltage

100 - 240 VAC, rated

Powered by PoE

Maximum power rating

40 W

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

PoE Power is the power supplied by the internal power supply, it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS).

 Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by External Power Supply (EPS). This product provides PoE or PoE+ power across 4 of 5 ports, with a total power budget of 32W.

Please select the correct power cord country option.

Safety

UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03

Emissions

FCC Rules Part 15, Subpart B Class A

Immunity

Generic

EN 55022 CISPR 22

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2

Flicker

IEC 61000-3-3

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
