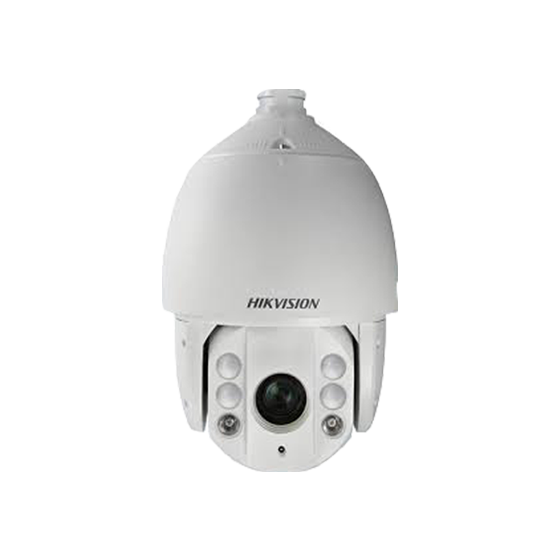

HIK-TV7230TI-A Camera PTZ HD-TVI HD1080P

Chi tiết sản phẩm:

Camera
- Image Sensor: | 1/2.8″ Progressive Scan CMOS
- Effective Pixels: | 1920(H)x1080(V)
- Signal System: | PAL/NTSC
- Minimum Illumination: | Color: 0.05Lux@(F1.4,AGC ON); B/W: 0.005Lux@(F1.4,AGC ON); 0 lux with IR
- White Balance: | Auto / Manual / ATW / Indoor / Outdoor
- AGC: | Auto/Manual
- BLC: | ON/OFF
- WDR: | Support
- Shutter Time: | PAL: 1-1/10,000s; NTSC: 1-1/10,000s
- Day& Night: | ICR
- Digital Zoom: | 16x
- Privacy Masking: | 8 privacy masks programmable
- Auto Focus: | Auto / Semi-automatic / Manual

Lens
- Focal Length: | 4-120mm, 30X
- Zoom Speed: | Approx.3.0s(Optical Wide-Tele)
- Angle of View: | 58-21.7 degree(Wide-Tele)
- Minimum Working Distance: | 10-1500mm (Wide-Tele)
- Aperture Range: | F1.4-F4.0

Pan & Tilt
- Pan Range: | 360°endless
- Pan Speed: | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s
- Tilt Range: | -15°-90° (Auto Flip )
- Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s
- Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
- Number of Preset: | 256
- Patrol: | 8 patrols, up to 32 presets per patrol
- Pattern: | 4 patterns, with the total recording time not less than 10 minutes
- Power loss recovery: | Support
- Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
- PTZ Position Display: | ON/OFF

Infrared
- IR irradiation distance: | 120m
- IR irradiation angle: | Adjustable by zoom
- Input & Output
- Turbo HD Output: | 1 turbo HD1080p output, BNC

General
- RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Menu Language: | English / Chinese
- Power Supply: | 24V AC
- Power Consumption: | Max. 30W(IR: 9W, Heater: 6W)
- Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F); 90% or less
- Protection Level: | IP66 standard (outdoor dome). TVS 4,000V lightning protection, surge protection and voltage transient protection
- Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)
- Weight (approx.): | 4.5kg(9.92 Ibs)
- Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
