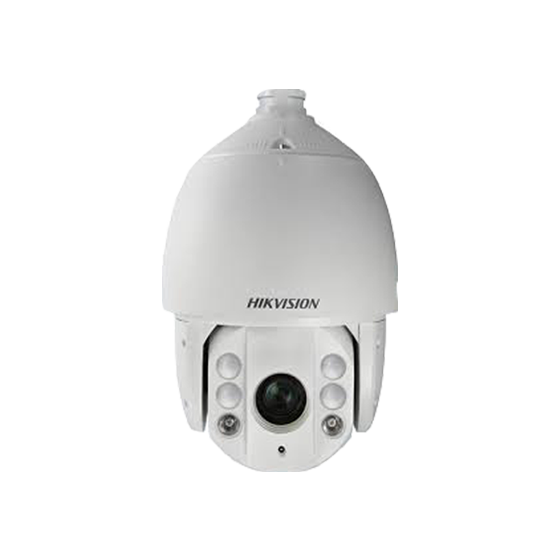

HIK-IP9120IW-AE Camera PTZ IP 1.3MP 20x

Chi tiết sản phẩm:

Camera
- Image Sensor: | 1/3″ Progressive Scan CMOS
- Effective Pixels: | 1280(H)x960(V)
- Signal System: | PAL/NTSC
- Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01lux, 0 lux with IR
- White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
- AGC: | Auto/Manual
- BLC: | ON/OFF
- HLC: | Support
- Smart defog: | Support
- WDR: | Support
- Shutter Time: | 1-1/10,000s
- Day& Night: | ICR
- Digital Zoom: | 16X
- Privacy Masking: | 2 privacy masks programmable
- Auto Focus: | Auto / Semi-automatic / Manual

Lens
- Focal Length: | 4.7-94mm, 20x
- Zoom Speed: | Approx.3s(Optical Wide-Tele)
- Angle of View: | 58.3-3.2 degree (Wide-Tele)
- Minimum Working Distance: | 10-1000mm(Wide-Tele)
- Aperture Range: | F1.6-F3.5

Pan & Tilt
- Pan Range: | 360°endless
- Pan Speed: | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s
- Tilt Range: | -15°-90° (Auto Flip )
- Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s
- Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
- Number of Preset: | 300
- Patrol: | 8 patrols, up to 32 presets per patrol
- Power loss recovery: | Support
- Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
- PTZ Position Display: | ON/OFF
- Freeze Frame: | Support

Infrared
- IR irradiation distance: | 150m
- IR irradiation angle: | Adjustable by zoom

Alarm
- Alarm Input: | 2
- Alarm Output: | 1
- Alarm Actions: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

Input & Output
- Audio Input: | 1 Mic in/Line in interface. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
- Audio Output: | 1 Audio output interface. Line level, impedance: 600Ω

Network
- Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
- Max.Image Resolution: | 1280×960
- Main Stream: | 50Hz:25fps (1280×960,1280×720), 50fps (1280×960,1280×720); 60Hz: 30fps(1280×960,1280×720), 60fps (1280×960,1280×720)
- Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)
- Third Stream: | 50Hz:25fps (1280×960,1280×720,704×576,640×480,352×288); 60Hz: 30fps(1280×960,1280×720,704×480,640×480,352×240)
- Image Compression: | H.264 / MJPEG
- ROI encoding: | Support 2 areas with adjustable levels
- Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2
- Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- No. of Simultaneous Users: | Up to 20 users
- Dual Stream: | Support
- Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
- User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
- Security Measures: | User authentication (ID and PW), host authentication (MAC address)
- EZVIZ: | Support

Client GUI
- Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
- Date & Time Display: | Time: Week: Date, 6 formats on the Client
- Client: | Support iVMS-4200
- Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General
- Menu Language: | English
- Power Supply: | 24 VAC & Hi-PoE
- Power Consumption: | Max. 40W
- Working Temperature/Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor), 90% or less
- Protection Level: | IP66 standard (outdoor dome). TVS 4,000V lightning protection, surge protection and voltage transient protection
- Mounting: | Various mounting modes optional
- Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor)
- Weight (approx.): | 4.5kg(9.92Ibs)
- Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
