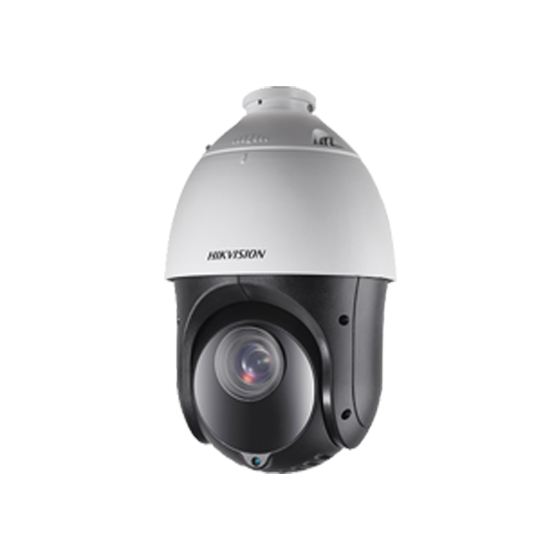

HIK-IP8120I-D Camera PTZ IP 1.3MP 20X

Chi tiết sản phẩm:

Camera
- Image Sensor: | 1/3″ Progressive Scan CMOS
- Effective Pixels: | 1280(H)x960(V)
- Signal System: | PAL/NTSC
- Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR
- AGC: | Auto/Manual
- BLC: | ON/OFF
- HLC: | Support
- WDR: | Support
- Shutter Time: | 1-1/10,000s
- Day& Night: | ICR
- Digital Zoom: | 16X
- Privacy Masking: | 8 privacy masks programmable
- Auto Focus: | Auto / Semi-automatic / Manual

Lens
- Focal Length: | 4.7-94.0mm, 20x
- Zoom Speed: | Approx.3s(Optical Wide~Tele)
- Angle of View: | 58.3-3.2 degree (Wide~Tele)
- Minimum Working Distance: | 10~1,000mm(Wide~Tele)
- Aperture Range: | F1.6~F3.5

Pan & Tilt
- Pan Range: | 360°endless
- Pan Speed: | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
- Tilt Range: | -15°-90° (Auto Flip )
- Tilt Speed: | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
- Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
- Number of Preset: | 300
- Patrol: | 8 patrols, up to 32 presets per patrol
- Power loss recovery: | Support
- Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
- PTZ Position Display: | ON/OFF

Infrared
- IR irradiation distance: | 100m
- IR irradiation angle: | Adjustable by zoom

Network
- Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
- Max.Image Resolution: | 1280×960
- Frame Rate: | 50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
- Main Stream: | 50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
- Sub Stream: | 50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240); 60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)
- Image Compression: | H.264 / MJPEG
- ROI encoding: | Support 4 areas with adjustable levels
- Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- No. of Simultaneous Users: | Up to 20 users
- Dual Stream: | Support
- Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
- User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User
- Security Measures: | User authentication (ID and PW),
- Host authentication (MAC address)
- IP address filtering
- EZVIZ: | Support
- Client GUI
- Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
- Date & Time Display: | Time: Week: Date, 6 formats on the Client
- Client: | Support iVMS-4200
- Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General
- Menu Language: | English
- Power Supply: | 12V DC
- Power Consumption: | Max.20W
- Working Temperature/Humidity: | -30°C ~ 65°C (-22°F ~ 149°F)
- Protection Level: | IP66 standard (outdoor dome). TVS 4,000V lightning protection, surge protection and voltage transient protection
- Mounting: | Various mounting modes optional
- Dimensions: | Φ164.5(mm)×295(mm)
- Weight (approx.): | 2kg (4.41lbs)
- Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
- Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
