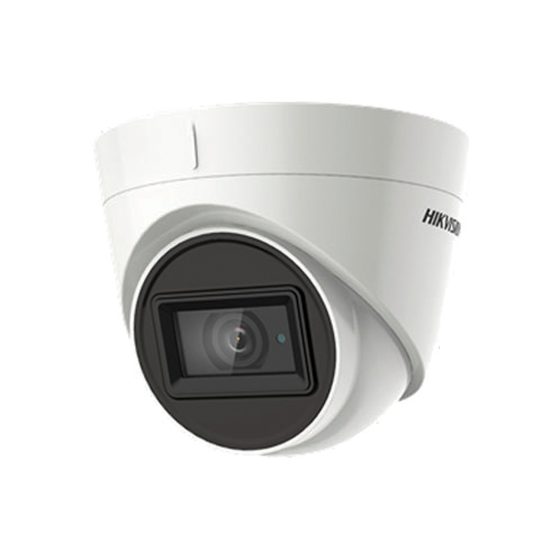

DS-2CE78U1T-IT3F 8MP Turret Camera

Thông số kỹ thuật:

Camera

• Image Sensor:  8.29 MP high performance CMOS
• Signal System:  PAL/NTSC
• Effective Pixels:  3840 (H) × 2160 (V)
• Min. Illumination:  0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time:  PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
• Lens:  2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Lens Mount:  M16
• Adjustment Range:  Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
• Day& Night:  IR cut filter
• Video Frame Rate:  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
• Synchronization:  Internal Synchronization

Lens

• Horizontal Field of View:  102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73°(8 mm), 23.96°(12 mm)

Menu

• D/N Mode:  Auto/Color/BW (Black and White)
• BLC:  Support
• AGC:  Support
• Language:  English
• Function:  Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

• Video Out:  1 HD analog output

General

• Material:  Enclosure: Plastic
• Main body: Metal
• Operating Conditions:  -40 °C – 60 °C (-40 °F – 140 °F). Humidity 90% or less (non-condensing)
• Power Supply:  12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
• Power Consumption:  Max. 5.3 W
• IR Range:  Up to 60m
• Communication :  Up the coax
• Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
• Dimension:  Ø 109.82 mm × 91.03 mm (Ø 4.32″ × 3.6″ )
• Weight:  Approx. 320 g (0.71 lb.)
