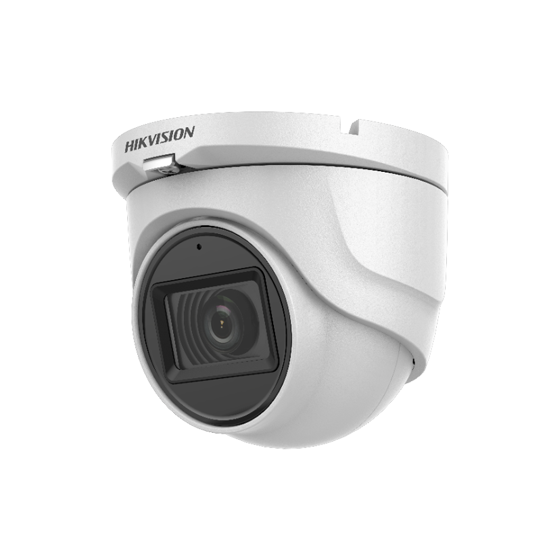

DS-2CE76D0T-ITMFS Camera HD-TVI 2MP – Audio Camera

Thông số kỹ thuật:

Camera

• Image Sensor: 2MP CMOS
• Signal System: PAL/NTSC
• Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
• Resolution: 1920 (H) × 1080 (V)
• Min. illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field of View: 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
• Lens Mount: M12
• Day & Night:ICR
• WDR (Wide Dynamic Range): Digital WDR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

• Image Mode: STD/HIGH-SAT
• AGC: Support
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: Auto/Manual
• HLC: Yes
• BLC (Backlight Compensation): Yes
• Language: English
• Functions: Brightness, Sharpness, Mirror, Smart IR

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Operating Condition: ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 3.7 W
• Protection Level: IP67
• Material: Metal
• IR Range: Up to 30 m
• Communication: HIKVISION-C
• Dimensions: 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")
• Weight: Approx. 289.5 g (0.64 lb.)
