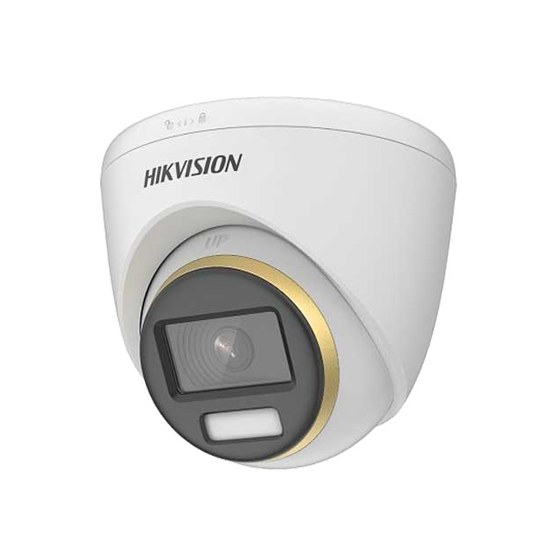

DS-2CE72DF3T-FS Camera bán cầu có màu ban đêm 2MP (ColorVu)

Thông số kỹ thuật:

Specification

• Image Sensor: 2 MP CMOS
• Signal System: PAL/NTSC
• Resolution: 1920 (H) × 1080 (V)
• Frame Rate: TVI: 1080p @ 25 fps/30 fps
• CVI: 1080p @ 25 fps/30 fps
• AHD: 1080p @ 25 fps/30 fps
• CVBS: PAL/NTSC
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Slow Shutter: Max. 16 times
• Lens: 2.8 mm, 3.6 mm fixed focal lens
• Field of View: 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°; 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
• Lens Mount: M12
• Light Alarm: Solid Light Alarm (White Light)
• Day & Night: Color
• WDR (Wide Dynamic Range): ≥130 dB
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu

• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto/Manual
• AE (Auto Exposure) Mode: WDR, BLC, HLC, Global, HLS
• Privacy Mask: 4 programmable privacy masks
• Motion Detection: 4 programmable motion areas
• Noise Reduction: 3D DNR/2D DNR
• Language: English
• Function: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
• Audio In: Built-in mic

General

• Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply: 12 VDC ± 25%
• You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 4.4 W
• Protection Level: IP67
• Material: Main body: Metal, Enclosure: Plastic
• White Light Range: Up to 40 m
• Communication: HIKVISION-C
• Dimension: Φ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
• Weight: Approx. 336 g (0.74 lb.)
