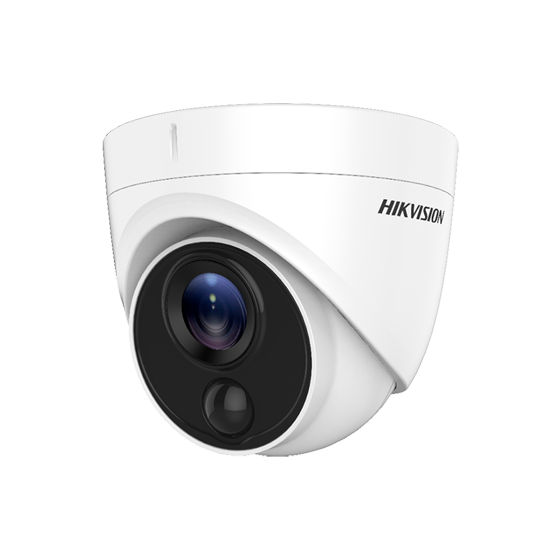

DS-2CE71H0T-PIRL Camera bán cầu HD-TVI 5MP

Thông số kỹ thuật:

Camera

• Lens: 2.8 mm, 3.6 mm fixed focal lens
• Horizontal Field Of View: 85.5° (2.8 mm), 80.1° (3.6 mm)
• Lens Mount: M12
• Visual Alarm: Yes
• Day & Night: IR cut filter
• Synchronization: Internal synchronization
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Image Sensor: 5.0 megapixel progressive scan CMOS
• Signal System: PAL/NTSC
• Frame Rate: PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Menu

• White Light: Alarm/Off
• AGC: Yes
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: Auto/Manual
• Backlight Compensation: Yes
• Language: English
• Functions: Brightness, Contrast, Sharpness, Saturation, DNR, Mirror

Interface

• Video Output: 1 HD analog output

General

• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply: 12 VDC ± 25%
• Power Consumption: Max. 4 W
• Material: Enclosure: Plastic Main body: Metal
• IR Range: Up to 20 m
• PIR Range: Angle: 110°, Range:11 m
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions: Ø 109.8 mm × 89.75 mm (Ø 4.32" × 3.53" )
• Weight: Approx. 310 g (0.68 lb.)
• Ingress Protection: IP67
