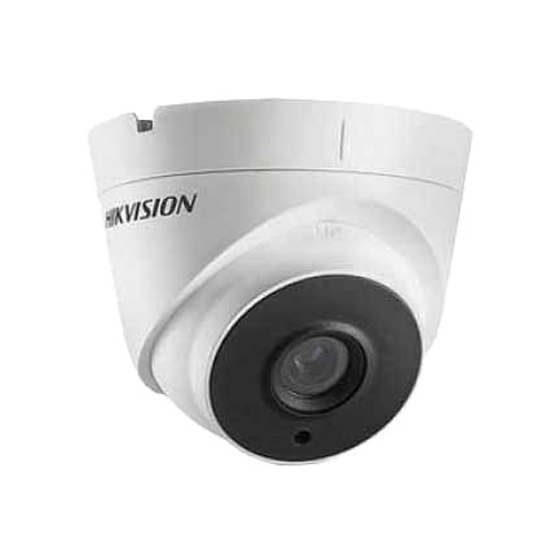

DS-2CE56D8T-IT3F Camera HD-TVI Starlight 2MP

DS-2CE56D8T-IT3F Camera HD-TVI Starlight 2MP

Thông số kỹ thuật:

Camera

• Image Sensor: 2.0 mega pixel progressive scan CMOS
• Signal System: PAL/NTSC
• Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
• Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View: 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
• Lens Mount: M12
• Day & Night: IR cut filter
• WDR (Wide Dynamic Range): ≥ 130 dB
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Menu

• Image Mode: STD/HIGH-SAT
• AGC: Support
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: ATW/MANUAL
• HLC: Yes
• BLC (Backlight Compensation): Yes
• Language: English
• Functions: Brightness, Sharpness, Mirror, Smart IR, HLC

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Power Supply: 12 VDC ±25%
• Power Consumption: Max. 3.4 W
• Protection Level: IP67
• Material: Enclosure: Plastic Main Body: Metal
• IR Range: Up to 60 m
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions: Ø 110 mm × 93.2 mm (Φ 4.33" × 3.67")
• Weight: Approx. 315 g (0.69 lb.)
