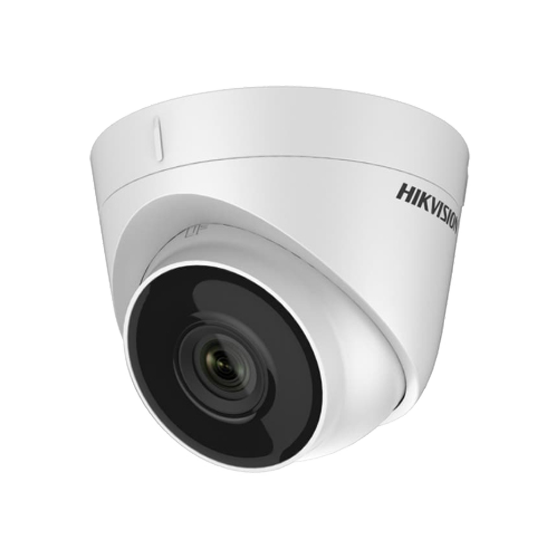

DS-2CD1323G0-IU Camera Dome IP hồng ngoại 2MP
- Chọn loại:
-
Mã: DS-2CD1323G0-IU
- Camera IP Hồng ngoại 2MP chuẩn nén H.265
- Cảm biến 1/2.7" Progressive Scan CMOS; Chuẩn nén H.265/H.264+/H.264/MJPEG. Ông kinh 4mm ( hoặc 2.8mm,6mm)
- Độ nhạy sáng Màu: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Độ phân giải tối đa: 25fps/30fps(1920×1080); Hồng ngoại 30m
- Tính năng Chống ngược sáng thực DWDR, 3D DNR; ICR;
- Hỗ trợ mic tích hợp
- Nguồn cấp DC12V&PoE; Tiêu chuẩn IP66.
- Tính năng Phát hiện chuyển động, phát hiện video giả mạo.
- Hỗ trợ dịch vụ Hik-Connect,
- Hãng sản xuất: Hikvision
- Bảo hành: 24 tháng
-
2.460.000 VNĐThêm vào giỏ
- Chi tiết sản phẩm
- Bình luận
Thông số kỹ thuật:
Camera
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day & Night: IR cut filter
- Wide Dynamic Range: Digital WDR
Lens
- Lens: Fixed lens, 2.8/4 mm
- Auto-Iris: No
- Aperture: F2.0
- FOV: 2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
- Lens Mount: M12
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850 nm
Video
- Max. Resolution: 1920 × 1080
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-Set
- Region Of Interest: 1 fixed region for main stream and sub-stream
- Image Enhancement: BLC, 3D DNR
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
- Day/Night Switch: Day/Night/Auto/Schedule
- Main Stream Max. Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator, and User
- Client: iVMS-4200, Hik-Connect, iVMS-5200
- Web Browser: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Alarm Trigger: Motion detection, video tampering alarm, illegal login
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General
- Firmware Version: 5.5.83
- General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
- Material: Camera body: metal, bottom base : plastic
- Dimensions: Camera: 94.4 × Φ110 mm (3.7" × Φ4.3") ;With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
- Weight: Camera: Approx. 354 g (0.8 lb.) ;With package: Approx. 681 g (1.5 lb.)
- Power Consumption And Current: 12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W
- Interface Protection: Ingress protection: IP66 (IEC 60529-2013)
