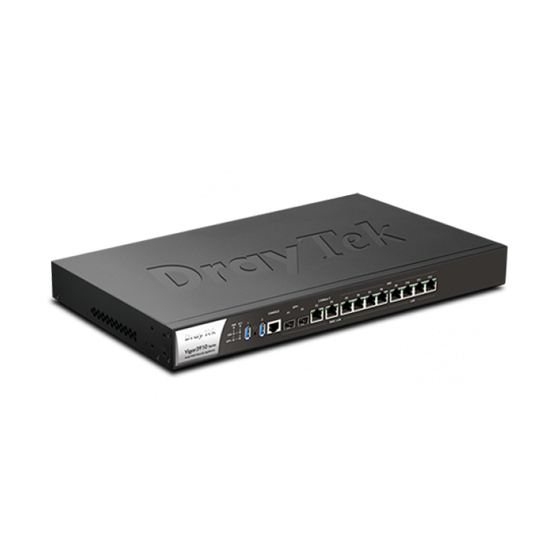

DrayTek Vigor3910

Thông số kỹ thuật:

PHẦN CỨNG

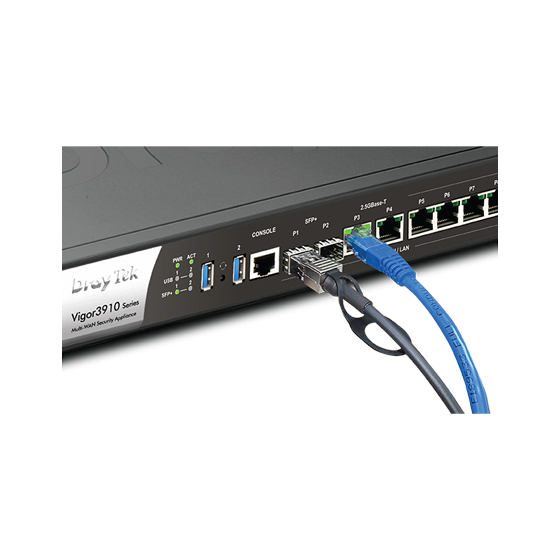

Port
- WAN

• 1x 10G/1G SFP+ Fiber Slot (P1)
• 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3)
• 4x 1G/100M/10M Ethernet, RJ-45 (P5-P8)

- LAN

• 1x 10G/1G SFP+ Fiber Slot (P2)
• 1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P4)
• 4x 1G/100M/10M Ethernet, RJ-45 (P9-P12)

- USB

• 2x USB 3.0

- Console

• 1 cổng console RJ45

- Nguồn

• AC 100~240V, 50/60Hz
• Power Consumption 35 watt

- Nút điều khiển

• 1 Button Factory

- Kích thước

• 443 mm x 285 mm x 45 mm

- Trọng lượng

• 3.23 kg
• PHẦN MỀM
• WAN

- Multi-WAN  (10Gb/2.5Gb/1Gb)

• Outbound Policy-based Load-balance
• WAN Connection Failover

- WAN Protocol

• DHCP Client
• Static IP
• PPPoE
• PPTP
• L2TP

- Network

• Packet Forwarding Acceleration
• DHCP client/relay/server
• DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
• IGMP v2/v3
• LAN DNS /DNS Forwarding
• Dynamic DNS
• NTP client
• Call scheduling
• RADIUS /TACACS+ Client
• RADIUS Server
• Active Directory /LDAP compatible (client)
• DNS cache/proxy
• UPnP 50 sessions
• Wake on LAN
• Bonjour service
• Routing protocol :
• Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
• RIP v1/v2

- Management

• Web-Based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management with MIB-II
• Management Session Time Out
• 2-level management (Admin/User Mode)
• TR-069 Management
• TR-104 Management

Chất lượng dịch vụ
- QoS :

• Guarantee Bandwidth for VoIP
• Class-based Bandwidth Guarantee by User-defined Traffic Categories
• DiffServ Code Point Classifying
• 4-level Priority for Each Direction (Inbound/Outbound)
• Bandwidth Borrowed

- Bandwidth / Session Limitation
- Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping *

- VPN

• Up to 500 VPN Tunnels (including 200 SSL VPN tunnels)
• Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption: MPPE and Hardware-based AES/DES/3DES
• Authentication: MD5, SHA-1
• IKE Authentication: Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
• DHCP over IPSec
• IPSec NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-Through
• mOTP

Tính năng nâng cao
- Firewall

• DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS Prevention
• IP Address Anti-Spoofing
• E-mail alert and logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control

- Central Device Management

• AP Management : 30 nodes (independent with External Device feature)*
• Central VPN Management : 8 nodes
• Switch Management : 10 nodes *

- Content Security Management (CSM)

• APP Enforcement
• Support APPE Signature Upgrade by license.
• URL Content Filter
• Access Control : URL Keyword Blocking (White/Black List)
• Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
• Web Content Filter (support Cyren and BPjM )

- USB

• 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle
• (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)
• File System :
• Support FAT32 / FAT16 file system
• Support FTP function for File Sharing

THÔNG SỐ KHÁC
- Chứng chỉ

• CE FCC

- Môi trường

• Operating Temperature: 0 to 45°C
• Storage Temperature: -10 to 55°C
• Operating Humidity (non-condensing): 10 to 90%
