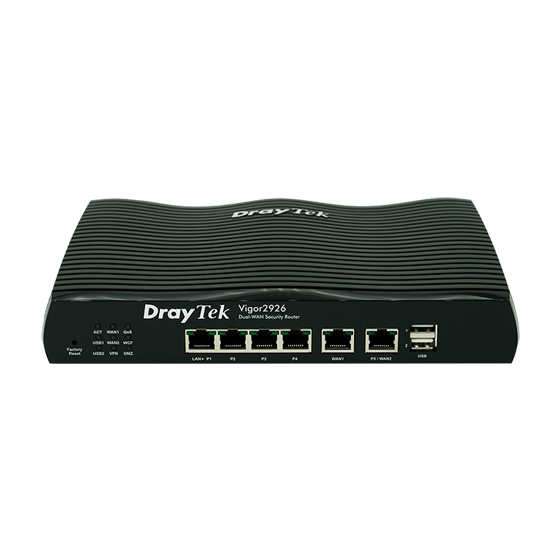

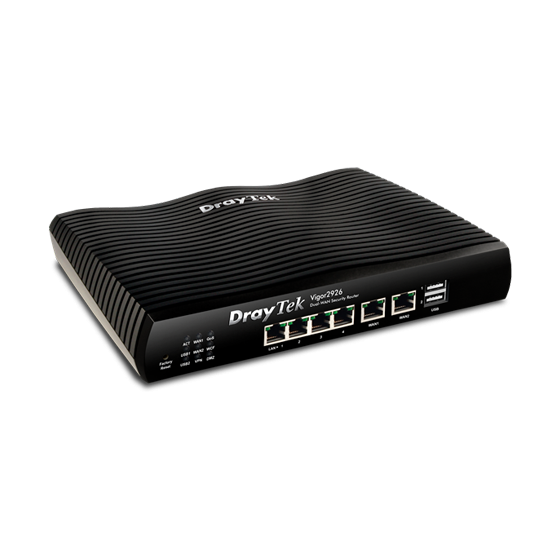

DrayTek Vigor2926

Thông số kỹ thuật:

PHẦN CỨNG
- Port

• 2 x GbE WAN
• 4 x GbE LAN
• 2 x USB 2.0

- Nguồn

• DC 12V/1.5A

- Nút điều khiển

• 1 x Factory Reset Button

PHẦN MỀM
WAN
- Ethernet WAN

• DHCP Client
• Static IP
• PPPoE
• PPTP / L2TP (WAN-2 only)
• 802.1q Multi-VLAN Tagging

- IPv6 Connection Type

• Dual Stack: PPP, DHCPv6 Client, Static IPv6
• Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel

- USB WAN

• PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU

- Dual WAN

• Load-Balance / Route Policy
• Outbound policy-based load-balance
• WAN Connection Failover
• Multiple-VLAN
• Network

- Hotspot Web Portal
- Packet Forwarding Acceleration
- DHCP client/relay/server
- DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
- IGMP v2/v3
- LAN DNS /DNS Forwarding
- Dynamic DNS
- NTP Client
- Call Scheduling
- RADIUS /TACACS+ Client
- Internal RADIUS Server
- Active Directory /LDAP compatible (client)
- DNS Cache/Proxy and LAN DNS
- UPnP 50 sessions
- Wake on LAN
- Bonjour service
- Routing Protocol:

• Static Routing
• RIP v1/v2
• BGP

- Triple-Play Application

• IGMP snooping/proxy

- 8 x Multiple Subnet LAN

• Management

- Web-based User Interface (HTTP/HTTPS)
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/HTTP/TR-069
- Logging via Syslog
- SNMP v2/v3
- Support SMS/E-mail Alert
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External device detection (master mode)
- TR-069/TR-104
- Support Multiple-Firmware Upgrade Utility (MFUU)
- Dashboard

• Chất lượng dịch vụ

- QoS

• Guarantee bandwidth for VoIP
• Class-based bandwidth guarantee by user-defined traffic categories
• DiffServ Code Point classifying
• 4-level priority for each direction (Inbound/Outbound)

- Bandwidth borrowed

• Bandwidth/Session limitation
• Smart Bandwidth Limit
• config by ip range
• Layer-3 (TOS/DSCP) QoS

- Layer-2 (802.1p) QoS
- WAN budget

VPN
- Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
- VPN Wizard
- VPN Trunk with Backup / Load Balance
- Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
- Encryption : MPPE and hardware-based AES/DES/3DES
- Authentication : MD5, SHA-1
- IKE Authentication : Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
- DHCP over IPsec
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-through
- mOTP

Tính năng nâng cao
- Firewall

• DMZ Host：Port-redirection, Open Port, Port Triggering
• User-based / Rule-based Firewall
• Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track)
• DoS Prevention
• Time Schedule Control
• DNS Filter Enhancement
• User Management
• Firewall Wizard Mode and Advanced Mode

- CSM (Content Security Management)

• APP Enforcement: Support APPE Signature Upgrade by license
• URL Content Filter
• Access Control : URL Keyword Blocking (White/Black List)
• Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
• Web Content Filter (support Cyren and BPjM)
• DNS Filter

- Central Device Management

• AP Management
• VPN Management
• Switch Management
• External Devices
• USB

- File System
- Support FAT32 File System
- Support FTP Function for File Sharing
- 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can
- support Dual USB WAN)
- USB Device Status (disk/modem/printer/sensor)
- Support USB Temperature Sensor
- Support file sharing (DrayTek’s own SMB protocol stack)

THÔNG SỐ KHÁC
Môi trường
- Temperature   Operating : 0°C ~ 45°C
- Temperature  Storage : -25°C ~ 70°C
- Humidity :10% ~ 90% ( non-condensing )
