Product Differentiator (long)Compact 10-port fully managed Gigabit Layer 2 switch. This model has 8x 10/100/1000 ports and 2x combo dual personality ports operating either as 10/100/1000 or as Gigabit SFP ports.

Power Consumption Description18.6 W (maximum)

Heat Dissipation63 BTU/hr (66.46 kJ/hr)

Input Voltage100 - 127 / 200 - 240 VAC, rated

External I/O Ports(8) RJ-45 autosensing 10/100/1000 ports (2) dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T IEEE 802.3u Type 100Base-Tx IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports

Latency100 Mb Latency: < 7.4 µs 1000 Mb Latency: < 2.6 µs

Switching Capacity20 Gbps

Stacking CapabilitiesVirtual 16 switches

Throughputup to 14.8 Mpps

Memory and ProcessorARM9E @ 800 MHz 128 MB flash Packet buffer size: 1.5 MB dynamically allocated 256 MB DDR3 DIMM

Management FeaturesAruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management

Warranty Standard StatementLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary.

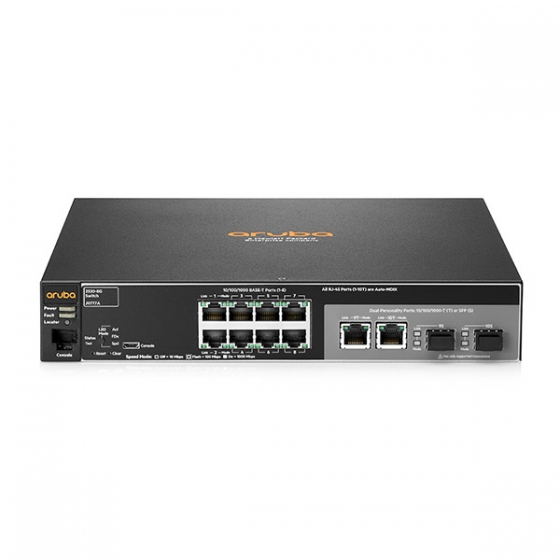

Detailed Product DescriptionAruba 2530 switch with 8 1GbE ports and 2 dual personality ports

Weight (imperial)2 lb

Weight (metric)0.91 kg

Product Dimensions (imperial)10 x 6.28 x 1.75 in

Product Dimensions (metric)25.4 x 15.95 x 4.45 cm
